Surface Mount Tennis

Wheeled Tennis Posts & net WQ-0005

WhatsApp:

Details

Product name
Wheeled Tennis Posts & net
Brand
GRAND
Model number
WQ-0005
Material
Aluminum Alloy Posts ,Recycble; Hot-Dip Galvanized Steel Base Frame
Size
13110*1000*1070mm; Post Profile:80*80*3.0mm
Surface treatment
Phosphating &Super Weather-Resistant Polyester Powder Coating
Design
Internal Copper Winder,Portable with wheeled design,No Harm to Court Surface
Color
Custom Colors Available
Logo
Custom Logo Available
Net
12800*1070mm; Mesh Opening:45*45mm
Application
Tennis Court,Tennis Club
Feature
Light Weight,Excellent Rust and Corrosion resistance,Long service life

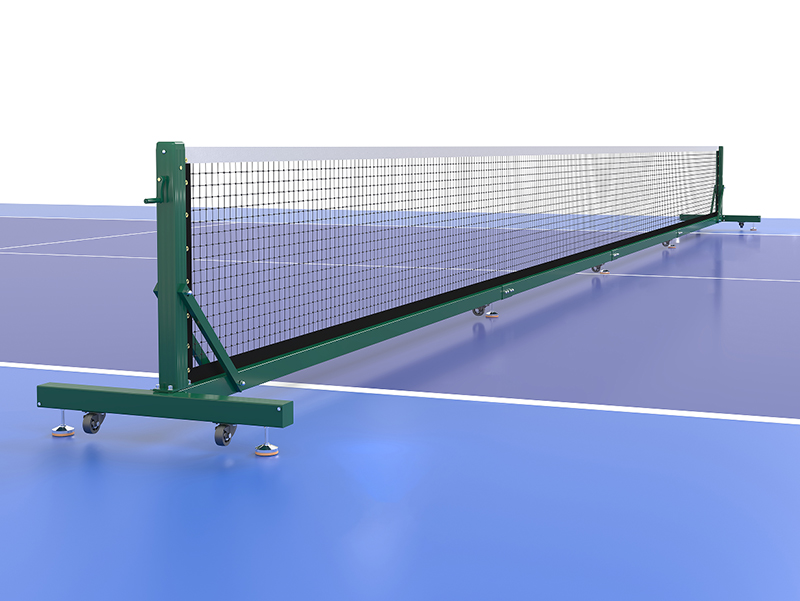

Wheeled Tennis Posts & net WQ-0005

Product Description

Material: The posts are meticulously crafted from full aluminum alloy profiles, which are recyclable and reusable. The base frame is made of hot-dip galvanized steel pipe,

Feature: strong corrosion resistance and a long service life.

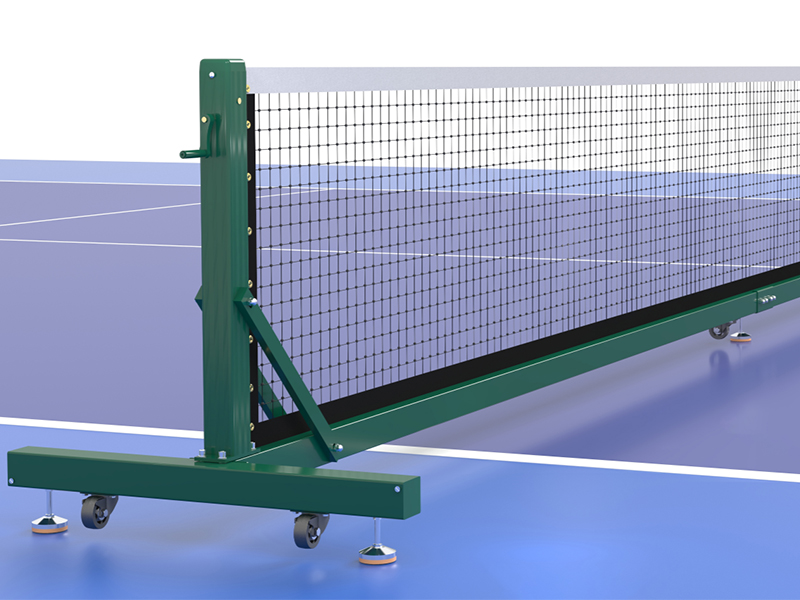

Movement Method: The base frame of the post is equipped with professional casters to move and fix easily, along with 304 stainless steel leveling feet to adjust standard height.

Finish: The profiles undergo phosphating treatment followed by super weather-resistant polyester powder electrostatic spraying, making them suitable for all-weather environments.

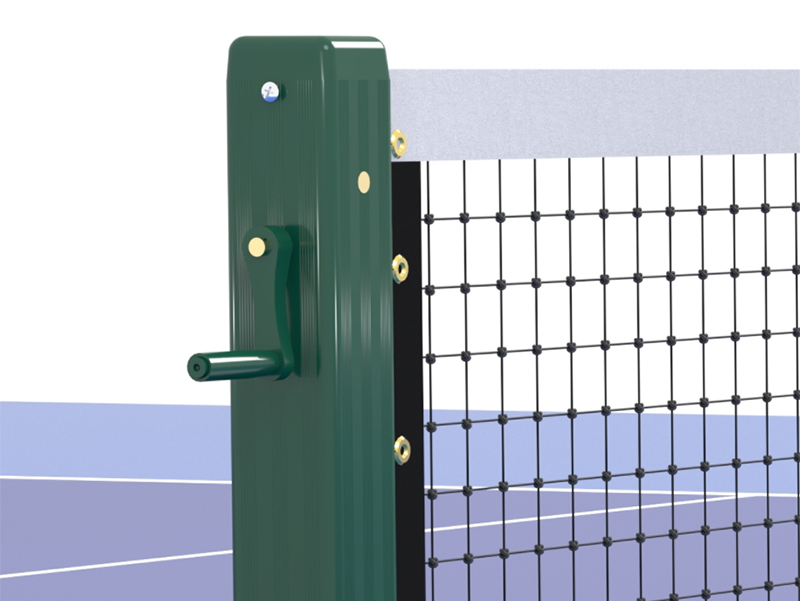

Design: Fully integrated copper worm gear tightening mechanism with an anti-rebound automatic locking device.

The net winder features a precision worm gear transmission structure .The inner side of the posts is welded with V-shaped edge rods to effectively tighten the net.

Application: Suitable for multi-purpose courts, indoor or outdoor tennis venues.

Specifications:
- Dimensions: Length 13110mm × Width 1000mm × Height 1070mm
-Post Profile: 80mm × 80mm
-Post Thickness: 3mm
- Ground Height: 1070mm
- Tennis Net: Equipped with a dedicated tennis net
- Color: Dark green / Customizable

In-Ground Tennis Post WQ-0006
